NE1C-EV5 EV Charging Stations
Product Characteristics
With exquisite appearance, its hand-held design is in line with principles of ergonomics, easy to plug in and pull out.
It conforms to IEC61851-1 standard.
Optional for black and white
Naming Rules
Specifications
Type | NE1C1132/ NE1C2132 | NE1C2332 | NE1C2232 | NE1C2432 |
AC power: | 1P+N+PE | 3P+N+PE | 1P+N+PE | 3P+N+PE |
Power supply Voltage: | AC230~±10% | AC400~±10% | AC230~±10% | AC400~±10% |
Rated current: | 10-32A | 10-32A | 10-32A | 10-32A |
Maximum power: | 7.4kW | 22kW | 7.4kW | 22kW |
Frequency: | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
Cable length: | 5m | 5m | Socket | Socket |
Sockets/plugs: | Type1/Type2 | Type2 | Type2 | Type2 |
Weight: | 5.6Kg | 6.8Kg | 3.45Kg | 3.7Kg |
IP grade: | IP55 | IP55 | IP55 | IP55 |
Working temperature | -40℃ ~ 45℃ | -40℃ ~ 45℃ | -40℃ ~ 45℃ | -40℃ ~ 45℃ |
Cooling mode: | cooling mode | cooling mode | cooling mode | cooling mode |

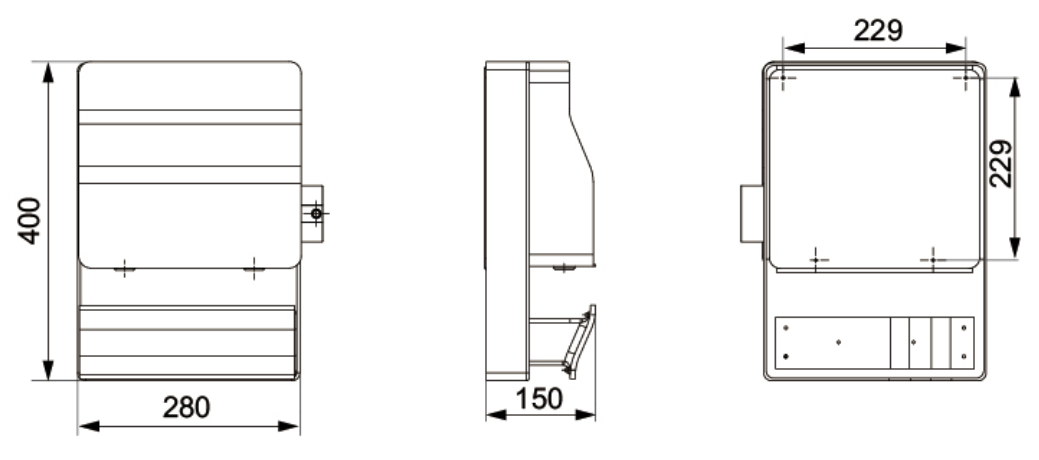

Appearance and Installation Size
…
