Scope of application
The AC charging pile provides AC 50Hz, rated voltage 220V AC power supply, and is supplied to an electric vehicle with a vehicle charger.Mainly applicable to the following places Large, medium and small electric vehicle charging stations;
Various public places with electric car parking spaces, such as urban residential quarters, shopping plazas, and electric power business places;
High-speed service area, station terminal and other transportation hub areas.
working environment
The ambient air temperature during operation is -25 ° C ~ 50 ° C, 24 h daily average temperature ≤ 35 ° C;
Monthly average relative humidity ≤ 90% (25 ° C), no condensation on the surface;
Atmospheric pressure 80kPa ~ 110kPa;
Installation vertical inclination ≤ 5%;
The harsh level of vibration and impact of the place is ≤I level, and the external magnetic field induction intensity in any direction is ≤1.5mT;
The use site must not have explosive atmospheres. The surrounding media does not contain harmful metals and conductive gases that damage the insulation and conduct electricity.Medium, not allowed to be filled with water vapor and more serious mold;
The place of use should avoid direct sunlight. When installing outdoors, it is recommended to install a shading facility for the charging pile;
When the user has special requirements, it can be resolved through consultation with our company.
Features
Available in both vertical and wall mount versions;
AC220V AC input;
The main control board adopts a single-chip microcomputer with an embedded operating system. The charging mode is divided into four
types: automatic full, fixed time, fixed amount, and fixed power. The RS-485 networking communication interface can be reserved and provided.With GPRS networking mode.
The color touch screen display is 4.3 inch 480×272 resolution, and the charging mode can be set by touch button operation;
The single-phase electronic energy meter is used for electrical metering, and communicates with the main control board through theRS-485 interface;
Using a non-contact smart card reader, reading information about the IC card, communicating with the main control board through the RS-485 interface, and mastering
The board background program performs charger identity identification, user information recording, charging cost calculation, etc.; the line switch adopts a switch with leakage protection function, and installs an emergency stop button;
The shape is made of sheet metal and part of ABS plastic structure.

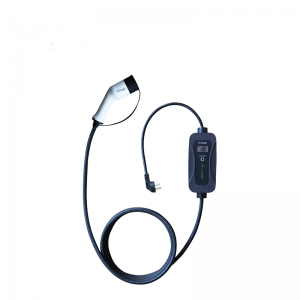

ELECTRICAL PERFORMANCE | |
Rated current | NEV-AC-16A/32A |
Operation voltage | 250V |
Insulation resistance | >500MΩ(DC500V) |
Contact Resistance | 0.5mΩ Max |
Terminal temperature rise | <50K |
Withstand voltage | 1500V |
MECHANICAL PROPERTIES | |
Mechanical life | no-load plug in/out >10000 times |
Coupled insertion force | 45N<F<100N |
Impat of external force | can afford 1M drop |
ENVIRONMENTAL PERFORMANCE | |
Operating temperature | -30℃-﹢50℃ |
APPLIED MATERALS | |
Case material | thermoplastic,flame retardant grade UL94 V-0 |
Terminal | Copper alloy,silver plating |
CONTROL BOX FUNCTION | Leakage protection |
Overvoltage under-voltage protection | |
Over load protection | |
Lightningprotection | |
Ground protection | |
Over-temperature protection |
