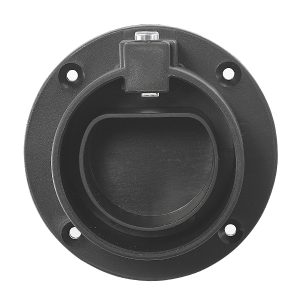

Electric Lock And Fixed Seat

Product Characteristics

With exquisite appearance, it has upper clamshell protection, supported for front installation mode.

Adopting reliable materials, it is characterized with flame retardant, wear resistant, impact resistant and high oil resistant.

It conforms to SHEET2-lla of IEC62196-2 standard.

With superior protection performance, its protection level reaches IP20.









Specifications

Rated voltage 12VDC
Voltagf range 10.5 TO 13.5 VDC
Non-ldling current ≤200mA
Maximum current ≤650mA
Thermal overload protection Not available
Locking lever retention force ≥80N
Locking lever breaking force ≥200N
Functional angle ≤90
Response time ≤100ms
Mximum power on time 3s (No long time conduction)
Movement time ＜300ms
Operating temperature -40T85
Electronical life ≥3E4 cycles
Insulation strength DC500V 1MΩ
Degree protection provided by enclosure IEC IP55
Single power on time DC12V 0.2S<t<1S
Operating duty cycle DC12V ON:OF=1S:3S
Manual unlocking pull ≤5N
Manual unlock life ≥3E3 cycles

Apperance Size

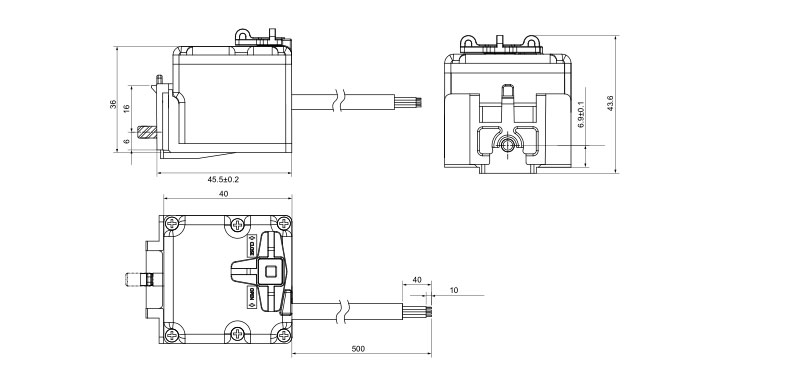

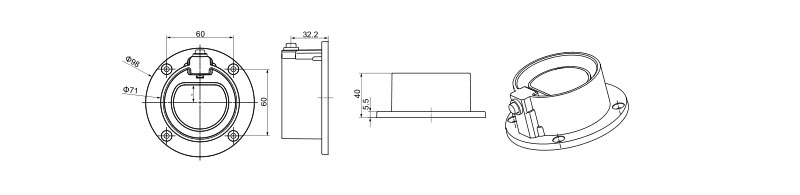

Appearance and Installation Size

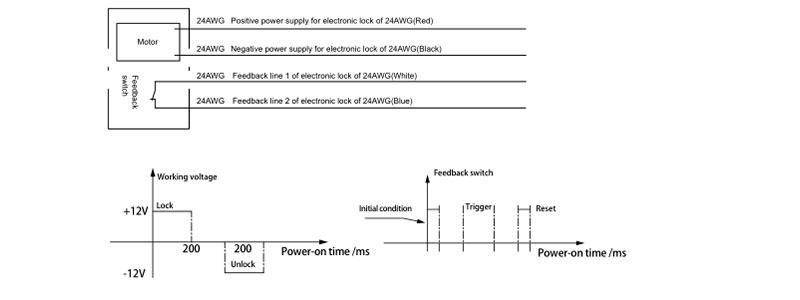

Schematic diagram of electronic control for electronic lock

Positive power supply with voltage of 12V Red line GND Black line Electronic lock condition Feedback switch condition
+ – Lock condition Conduction (closed)
– + Unlock condition Disconnected

Electrical wiring principle

…
