Product Characteristics
With exquisite appearance, it has upper clamshell protection, supported for front installation mode.
Adopting reliable materials, it is characterized with flame retardant, wear resistant, impact resistant and high oil resistant.
It conforms to SHEET2-lla of IEC62196-2 standard.
With superior protection performance, its protection level reaches IP44.
Electrical Parameter
| Rated Current | 16A/32A |
| Rated Voltage | 240V/415V |
| Insulation | ＞1000MΩ, DC(1000V) |
| Terminal temperature | ＞1000MΩ, DC(1000V) |
| Withstand Voltage | 2000V |
| Contact Resistance | 0.5mΩMax |
Mechanical Performance
| no-load plug in/pull out | ＞1000times |
| Coupled geinsertion force | ＜100N(P) ＜75N(V) |
| Withstanding lmpact Force | Affordable for falling from one-meter height and two-ton car crush |
Ambient Condition
| Ambient Temperature(working) | -30℃~+50℃ |
Major Material
| Housing Material | UL94V-0 Reinforced Themoplastic, UL94V-0 |
| Pin Material | Copper Alloy, Ag Plated |
Modle Selection And Standard Wiring
| Model | Rated Current | Cable specofocation |
| NDIEC-FSA/132-T2 | 32A single phase | 3×6.0mm 2 ＋2×0.5mm 2 |
| NDIEC-FSA/332-T2 | 32A three phase | 5×6.0mm 2 ＋2×0.5mm 2 |
| NDAEC-FSE332-T2 | 32A single phase | 3×6.0mm 2 ＋2×0.5mm 2 |
| NDAEC-FSE332-T2 | 32A three phase | 5×6.0mm 2 ＋2×0.5mm 2 |

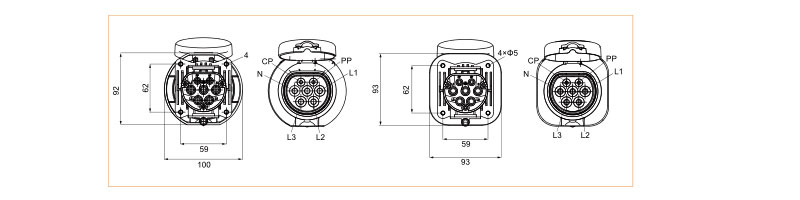

Appearance and Installation Size
…
