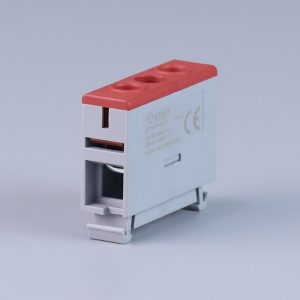

NT35 Red aluminum terminal

NT series terminal block

Suitable for AI/Cu cables: 1.5~240mm²

Available in black, brown, grey, red, blue(N)and yellow/green(PE)

Touch proof, IP20

Housing and cover in PA66,UL94-VO

Certified according to EN/IEC 60947-7-1, EN/IEC 60947-7-2

NT-terminals 16~35mm² for DIN-rail mounting

NT-terminals 50~150mm² for DIN-rail or Screw mounting

NT-terminals 240mm² for Screw mounting

Environmentally friendly materials

Durable laser markings

Name Date Unit
Model NT351P1RD 1P,2P
Number of connection points 2
Number of potentials 1
Color black, brown, grey, red, blue(N)and yellow/green(PE)
Length 43.5 mm
Width 16 mm
Height 42.2 mm
Pollution degree 3
Insulation material group
Rated surge voltage 8 KV
Rated voltage 1000 V
Nominal current 135 A
Min. connection capacity 2.5/14 mm²/AWG
Max. connection capacity 35/0 mm²/AWG
Line directions Side inlet
Strip length 16mm
Insulation material PA66
Flame-retarded Rating UL94 V-0

Dimensions
