NT series terminal block
Suitable for AI/Cu cables: 1.5~240mm²
Available in black, brown, grey, red, blue(N)and yellow/green(PE)
Touch proof, IP20
Housing and cover in PA66,UL94-VO
Certified according to EN/IEC 60947-7-1, EN/IEC 60947-7-2
NT-terminals 16~35mm² for DIN-rail mounting
NT-terminals 50~150mm² for DIN-rail or Screw mounting
NT-terminals 240mm² for Screw mounting
Environmentally friendly materials
Durable laser markings
Name | Date | Unit |

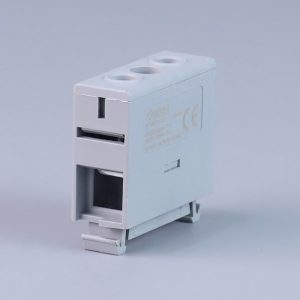

Model | NT351P1GY | 1P,2P |
Number of connection points | 2 | |
Number of potentials | 1 | |
Color | black, brown, grey, red, blue(N)and yellow/green(PE) | |
Length | 43.5 | mm |
Width | 16 | mm |
Height | 42.2 | mm |
Pollution degree | 3 | |
Insulation material group | Ⅰ | |
Rated surge voltage | 8 | KV |
Rated voltage | 1000 | V |
Nominal current | 135 | A |
Min. connection capacity | 2.5/14 | mm²/AWG |
Max. connection capacity | 35/0 | mm²/AWG |
Line directions | Side inlet | |
Strip length | 16mm | |
Insulation material | PA66 | |
Flame-retarded Rating | UL94 V-0 |
Dimensions
…
