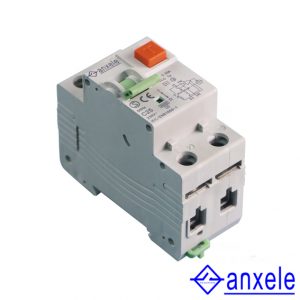

NRC3-32 (Electronic Type) RCBO RCCB with Overcurrent Protection

NRC3-32 (Electronic Type) RCBO RCCB with Overcurrent Protection

Technical Data

Electrical Features

Type (wave form of the earth leakage sensed):AC,A

Thermo-magnetic release characteristic:B,C

Rated current In :6, 10, 16, 20, 25, 32A

Poles:1P+N

Rated voltage Ue: 230/240V

Rated sensitivity I n:0.01, 0.03, 0.1, 0.3A

Rated residual making and breaking capacity I m:500A

Rated short-circuit capacity lcn:4,500/6,000A

Break time under I n : 0.1s

Rated frequency:50/60Hz

Rated impulse withstand voltage (1.2/50)Uimp:4,000A

Dielectric TEST voltage at ind. Freq. for 1min:2kV

Insulation voltage Ui:300V

Pollution degree:2

Mechanical Features

Electrical life:2000

Mechanical life:2000

Contact position indicator: Yes

Protection degree: IP20

Ambient temperature (with daily average 35 ):-5℃..+40℃

Storage temperation: -25℃…+70℃

Installation

Terminal connection type: Cable/Pin-type busbar

Terminal size top/bottom for cable: 16mm2 18-5AWG

Terminal size top/bottom for busbar: 16mm2 18-5AWG

Tightening torque 2.0 N*m 11In-Ibs.

Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device

Connection :From top

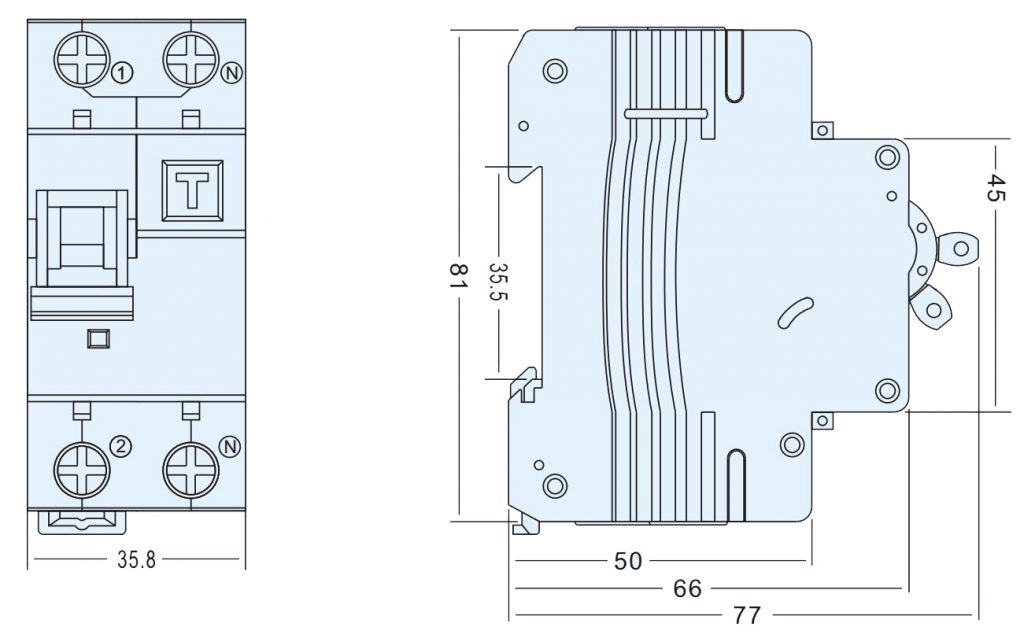

Dimensions (mm)

…
