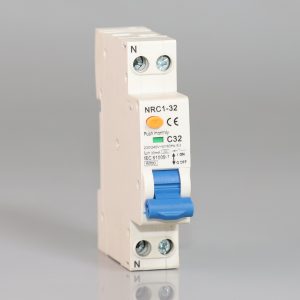

NRC1-32 32A 1P + N RCBO

NRC1-32 RCCB with Overload Protection(RCBO)

Technical Data

Electrical Features
Type (wave form of the earth leakage sensed):AC
● Thermo-magnetic release characteristic:C
● Rated current In : 6, 10, 16, 20, 25, 32A
● Poles:1P+N
● Rated voltage Ue: 230/240V
● Rated sensitivity I△n:0.03, 0.1, 0.3A
● Rated residual making and breaking capacity I△m:500A
● Rated short-circuit capacity lcn:6,000A
● Break time under I△n :≤0.1s
● Rated frequency:50/60Hz
● Rated impulse withstand voltage (1.2/50)Uimp:4,000A
● Dielectric TEST voltage at ind. Freq. for 1min:2kV
● Insulation voltage Ui:500V
● Pollution degree:2

Mechanical Features
● Electrical life:2,000
● Mechanical life:2,000
● Contact position indicator: Yes
● Protection degree:IP20
● Ambient temperature (with daily average≤35℃): -5℃…+40℃
● Storage temperation: -25℃…+70℃

Installation
● Terminal connection type: Cable/U-type busbar/Pin-type busbar
● Terminal size top/bottom for cable: 16mm2   18-5AWG
● Terminal size top/bottom for busbar: 16mm2   18-5AWG
● Tightening torque 2 N*m  18In-Ibs.
● Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
● Connection: From top

Dimensions
