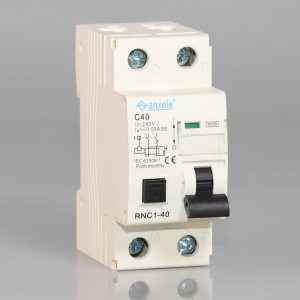

NRC1-40 40A 1P + N RCBO

NRC1-40 RCCB with Overload Protection(RCBO)

Technical Data
Electrical Features
● Type (wave form of the earth leakage sensed):AC,A
● Thermo-magnetic release characteristic:B,C
● Rated current In :6, 10, 16, 20, 25, 32, 40A
● Poles:1P+N
● Rated voltage Ue: 230/240V
● Rated sensitivity I△n:0.01, 0.03, 0.1, 0.3A
● Rated residual making and breaking capacity I△m:500A
● Rated short-circuit capacity lcn:4,500/6,000A
● Break time under I△n :≤0.1s
● Rated frequency:50/60Hz
● Rated impulse withstand voltage (1.2/50)Uimp:4,000A
● Dielectric TEST voltage at ind. Freq. for 1min:2kV
● Insulation voltage Ui:300V
● Pollution degree:2

Mechanical Features
Electrical life:2,000
● Mechanical life:2,000
● Contact position indicator: Yes
● Protection degree:IP20
● Ambient temperature (with daily average≤35℃): -5℃…+40℃
● Storage temperation: -25℃…+70℃

Installation
● Terminal connection type: Cable/Pin-type busbar
● Terminal size top/bottom for cable: 16mm2 18-5AWG
● Terminal size top/bottom for busbar: 16mm2 18-5AWG
● Tightening torque 2.0 N*m 11In-Ibs.
● Mounting: On DIN rail EN 60715 (35mm) by means of
● fast clip device
● Connection :From top

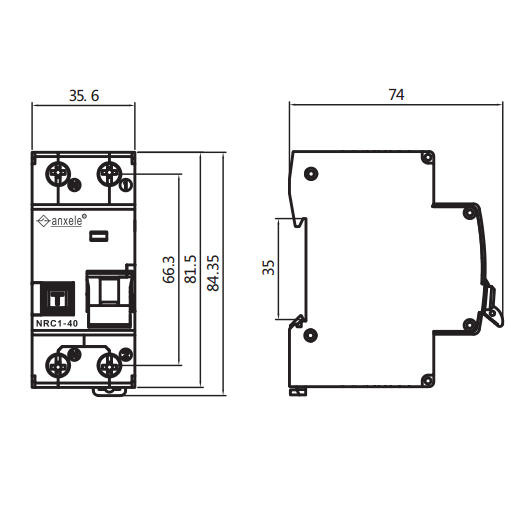

Dimensions
