NE1C-EV6 EV Charging Stations

NE1C-EV6 1P+N EV Charging Stations

Product Characteristics

With exquisite appearance, its hand-held design is in line with principles of ergonomics, easy to plug in and pull out.

It conforms to IEC61851-1 standard.

Optional for black and white















Naming Rules



Specifications

Type NE1C1132/ NE1C2132 NE1C2332 NE1C2232 NE1C2432
AC power: 1P+N+PE 3P+N+PE 1P+N+PE 3P+N+PE
Power supply Voltage: AC230~±10% AC400~±10% AC230~±10% AC400~±10%
Rated current: 10-32A 10-32A 10-32A 10-32A
Maximum power: 7.4kW 22kW 7.4kW 22kW
Frequency: 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Cable length: 5m 5m Socket Socket
Sockets/plugs: Type1/Type2 Type2 Type2 Type2
Weight: 4.4Kg 5.6Kg 2.65Kg 2.8Kg
IP grade: IP55 IP55 IP55 IP55
Working temperature -40℃ ~ 45℃ -40℃ ~ 45℃ -40℃ ~ 45℃ -40℃ ~ 45℃
Cooling mode: cooling mode cooling mode cooling mode cooling mode

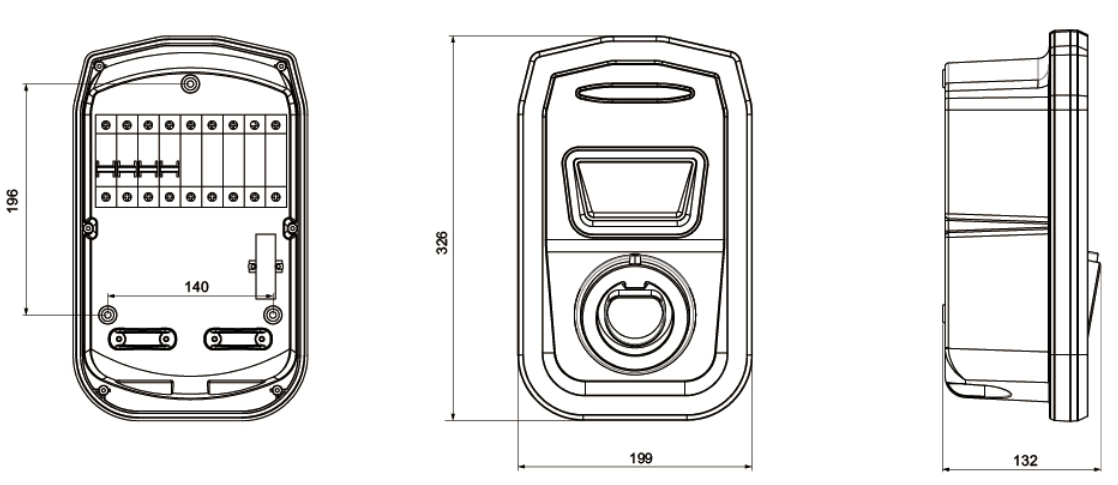

Appearance and Installation Size

…
