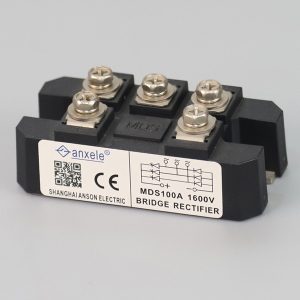

MDS-100A Single rectifier bridge

Features

  1. The chip is electrically insulated from the bottom plate, 2500V AC voltage
  2. International standard packaging
  3. Vacuum + hydrogen gas protection welding technology
  4. Easy to install, easy to use and maintain
  5. Small size and light weight
  6. The highest operating junction temperature reaches 150℃
  7. Small forward pressure drop











Application

  1. DC power supply for equipment
  2. Input rectified power supply of PWM inverter
  3. DC motor excitation power supply
  4. The input rectifier soft start capacitor charging of the switching power supply
  5. Electrical drag and auxiliary current
  6. Inverter welding machine
  7. Current charging DC power supply



Technical parameter

Type Circuit Vrrm Irrm Id Tc If(AV) If(rms) Ifsm V²t Vfm Vto rto Rth(c-h) Rth(c-h) Out丨ine
V mA A A A A A²S V V ℃/W ℃/W
MDS10 600-2500 ≤2 10 80 6 9.4 110 63 ≤1.3 0.94 12.28 10.42 0.40 III-33,-34,-37
MDS20 600-2500 ≤4 20 80 15 24 278 386 ≤1.3 0.90 4.70 4.35 0.40 III-33,-34,-37
MDS30 600-2500 ≤10 30 80 25 40 450 1010 ≤1.3 1.0 3.60 2.30 0.20 III-33,-34,-37
MDS60 600-2500 ≤10 60 85 40 65 650 2100 ≤1.3 0.90 2.70 1.40 0.20 III-33,-34,-37
MDS75 600-2500 ≤10 75 85 55 86 1020 5200 ≤1.3 1.0 2.70 0.80 0.20 III-33,-34,-37
MDS100 600-2500 ≤10 100 85 70 110 1230 7500 ≤1.5 0.80 2.57 0.75 0.20 III-33,-34,-37
MDS150 600-2500 ≤10 150 85 90 140 1620 13.1×10³ ≤1.5 0.75 2.07 0.60 0.20 III-35,-36,-38
MDS200 600-2500 ≤10 200 85 110 170 1900 18×10³ ≤1.5 0.85 1.25 0.50 0.10 III-35,-36,-38
MDS300 600-2500 ≤20 300 85 180 280 3500 61.2×10³ ≤1.6 0.75 1.03 0.30 0.10 III-39,-40
MDS400 600-2500 ≤20 400 85 250 390 4700 110×10³ ≤1.8 0.75 0.71 0.22 0.06 III-39,-40
MDS500 600-2500 ≤20 500 85 280 440 5190 134.7×10³ ≤1.8 0.75 0.79 0.18 0.06 III-39,-40

Installation size
