EV charging pile controller

Product Characteristics

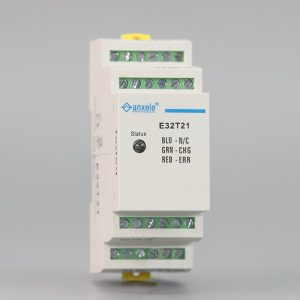

E32T21

It is divided to Cable version and Socket version.

Maximum charging capacity indication: 10A, 16A, 20A, 25A,32A (adjustable).

Convenient maintenance for Din-rail mounting.

















Product Characteristics

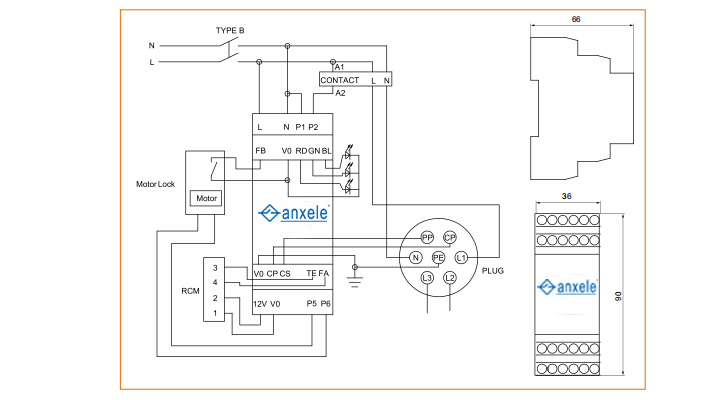

Terminal Assignment

TERMINAL DESCRIPTION
L This is where the AC ‘live’ or ‘line’ connection is made (90-264V @ 50/60Hz AC)
N This is where the AC ‘neutral’ connection is made (90-264V @ 50/60 Hz AC)
P1 Relay 1 live from RCCB
P2 Relay 1 live from RCCB
GN For external LED connection for green indication(5V 30mA)
BL For external LED connection for blue indication (5V 30mA
BL For external LED connation for red indication (5V 30mA)
VO This is where the ‘ground’ connection is made
CP This connects to the CP connector on the IEC61851/J1772 EVSE connector
CS This connects to the PP connector on the IEC61851 EVSE connector
P5 Provides 12V continuously to energise solenoid for hatch lock
P6 This provides 12V 300mA for 500 ms to engage the lock for motorised lock
FB Reads lock feedback for motorised locks
12V Power：12V
FA FAULT
TE TEST

Appearance and Installation Size

…
