AX-MS 18way Surface Distribution Box

AX-MS 18way Surface Distribution BoxAX-MS 18way Surface Distribution Box

Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.















Body material: ABS
Transparent door: PC
Earth/Natural bars: Brass
Material characteristic: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Protection grade: IP50
Installation:

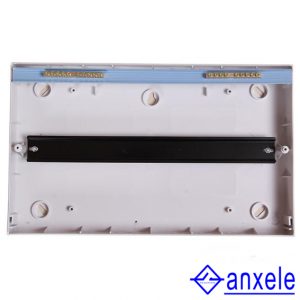

1. Inside: There are din rail inside for din-rail type circuit breakers, earth bar and natural bar for cable connection.
2. Outside: The products can be directly fixed on the wall or other flat boards with screw holes in the base.
Outlet hole: The plastic plate in the hole can be knocked off for cables.



Product Parameters

Model Code Outside Dimension (mm) G.Weight (KG) N.Weight (KG) Qty/Carton Carton Dimension (cm)
L W H
AX-MS 4way 112 200 95 11.5 8.7 30 51x36x45.5
AX-MS 6way 148 200 95 14.9 11.5 30 51×42.5×50
AX-MS 8way 184 200 95 16.7 12.8 30 52×43.5×59.5
AX-MS 10way 222 200 95 13 9.8 20 51x43x55
AX-MS 12way 256 200 95 14.8 11.5 20 52x43x55
AX-MS 15way 310 200 95 12.8 9.9 15 50.5×33.5×64
AX-MS 18way 365 222 95 15.2 12.8 15 52x38x71
AX-MS 24way 271 325 97 13.2 10.3 10 55x35x57.5
AX-MS 36way 271 462 100 18.5 14.8 5 54.5×28.5×48

Dimensions
