ASC1 3P/4P 63A Modular Contactors
Brief Introduction:
• ASC1 Series AC Contactor (contactor for short) is mainly designed for AC 50/60HZ circuits with 230/450V rated operating voltage in AC-7A usage, rated operating voltage up to 230V,rated operating current up to 63A
• It functions as long distance breaking and circuit controlling.
• This products is mainly applied to household appliances or low inductance loading and home electromotor loading control used for the similar purpose.
Specification
| Type Designation | Connecting Type | Qnt/Ctn | MU No | G/N W/N | MEAS |
| Pcs | Kg | (cm)s | |||
| ASC1-63
(32-63AMP)
|
3 Phase, 3NC | 40 | 3 | 14.5/13.5 | 47*26*18 |
| 3 Phase, 3NO | 40 | 3 | 14.5/13.5 | 47*26*18 | |
| 3 Phase, 2NO+1NC | 40 | 3 | 14.5/13.5 | 47*26*18 | |
| 3 Phase, 2NC+1NO | 40 | 3 | 14.5/13.5 | 47*26*18 | |
| 3 Phase + Four wire, 4NC | 40 | 3 | 14.5/13.5 | 47*26*18< | |
| 3 Phase + Four wire, 2NC+2NO | 40 | 3 | 14.5/13.5 | 47*26*18 | |
| 3 Phase + Four wire, 1NO+3NC”>3 | 40 | 3 | 14.5/13.5 | 47*26*18 | |
| 3 Phase + Four wire, 2NC+2NO | 40 | 3 | 14.5/13.5 | 47*26*18 | |
| 3 Phase + Four wire, 1NO+3NC | 40 | 3 | 14.5/13.5 | 47*26*18 |
Normal working and installation Conditions:
· Ambient temperature:-5℃ to +40℃.The average temperature no more than +35℃ in 24 hours.
· Altitude: No more than 2000m.
· Atmospheric condition: the relative humidity of the installation place should be no more than 50% When the maximum temperature is +40℃,If under a lower temperature ,a higher relative humidity is allowed. The monthly average minimum temperature in the wettest month should not exceed +25℃ and the monthly average maximum relative humidity of this month no more than 90%.Beside, the dew on the surface of products caused by temperature change should be taken into consideration.
· Class of Pollution :Class 2.
· Installation Condition: Class 2
· Installation Mode: Use the installation orbit of “Top Cap” section TH35-7.5 mould
· Mechanical Life:≥1*105times
· Electrical Life:≥3*104times
Specialty:
(Table 1: Types of contactor and relevant data)
|
Type |
Rated insulation voltage(V) |
Rated operating voltage(V) |
Rated heating current(A) |
Rated operating current(A) |
Control Power(KW) |
|
AC1,ACTa,ACTb |
500 |
230 |
100 |
100/40 |
25/6.5 |
|
AC1,ACTa,ACTb |
500 |
230 |
80 |
80/32 |
20/5 |
|
AC1,ACTa,ACTb |
500 |
230 |
63 |
63/25 |
13/3.8 |
|
AC1,ACTa,ACTb |
500 |
230 |
40 |
40/15 |
8.4/2.4 |
|
AC1,ACTa,ACTb |
500 |
230 |
32 |
32/12 |
6.5/1.9 |
|
AC1,ACTa,ACTb |
500 |
230 |
25 |
25/8.5 |
5.4/1.5 |
|
AC1,ACTa,ACTb |
500 |
230 |
20 |
20/7 |
4/1.2 |
|
AC1,ACTa,ACTb |
500 |
230 |
16 |
16/5.5 |
3.5/1.2 |
(Table 2: Switching on and segmenting ability)
|
Type |
Switching on and segmenting condition |
Pick-up time(s) |
Interval(s) |
Operation frequency |
||
|
Ic/Ie |
Ur/Ue |
Cos∮ |
||||
|
AC-1,AC-7a |
1.5 |
1.05 |
0.8 |
0.05 |
10 |
50 |
|
AC-7b |
8 |
1.05 |
0.45 |
0.05 |
10 |
50 |
(Table 3: Operating performance)
|
Type |
On condition |
Segment condition |
Pick-up time(s) |
Interval(s) |
Operation frequency |
||||
|
l/le |
U/Ue |
Cos∮ |
Ic/Ie |
Ur/Ue |
Cos∮ |
||||
|
AC-1 |
1.0 |
105 |
0.8 |
1.0 |
105 |
0.8 |
0.05 |
10 |
6000 |
|
AC-7a |
1.0 |
1.05 |
0.8 |
1.0 |
1.05 |
0.8 |
0.05 |
10 |
30000 |
|
AC-7b |
6.0 |
1.0 |
0.45 |
6.0 |
1.0 |
0.45 |
0.05 |
10 |
30000 |

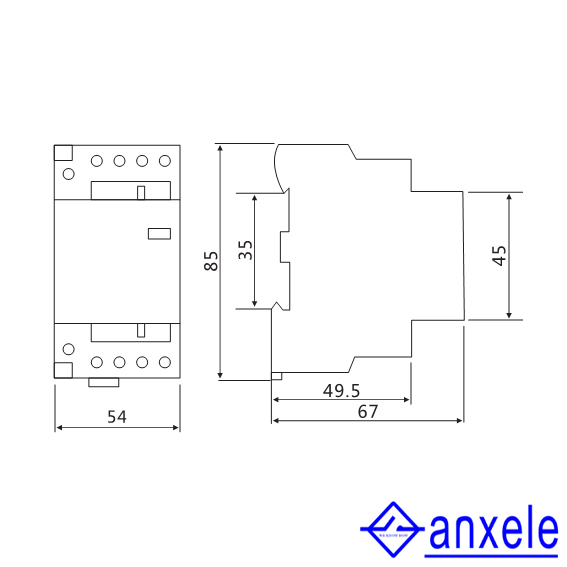

Connection Diagrams & Dimensions:
…
