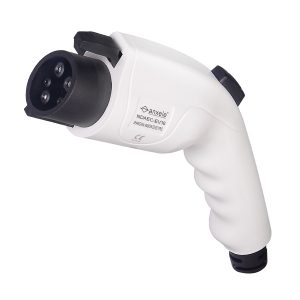

Product Characteristics
With exquisite appearance, its hand-held design is in line with principles of ergonomics, easy to plug in and pull out.
It conforms to SAE J1772-2010 standards.
With superior protection performance, its protection level reaches IP44.
Electrical Parameter
| Rated Current | 16A/32A |
| Rated Voltage | 240V |
| Insulation | ＞1000MΩ, DC(500V) |
| Terminal temperature rise | ＜50K |
| Withstand Voltage | 2000V |
| Contact Resistance | 0.5mΩMax |
Mechanical Performance
| no-load plug in/pull out | ＞1000times |
| Coupled geinsertion force | ＞45N＜80N |
| Withstanding lmpact Force | Affordable for falling from one-meter height and two-ton car crush |
Ambient Condition
| Ambient Temperature(working) | -30℃~+50℃ |
Major Material
| Case Material | UL94V-0 Reinforced Themoplastic, UL94V-0 |
| Contact bush | Copper Alloy, Ag Plated |
Modle Selection And Standard Wiring
| Model | Rated Current | Cable specofocation |
| NDAEC-EV32/TC01 | 32A | 3×6mm 2 ＋2×0.5mm 2 |

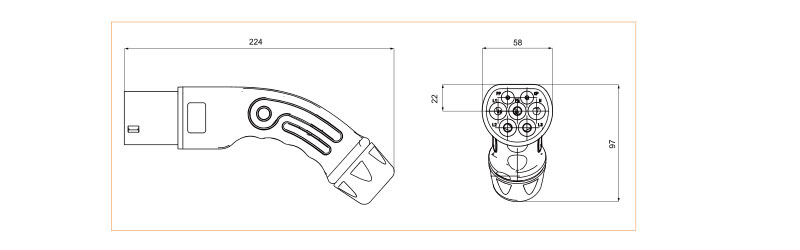

Appearance and Installation Size
…
