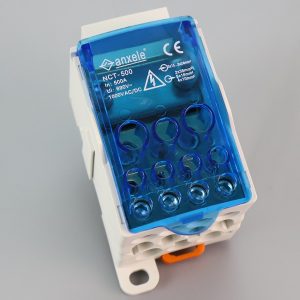

NCT-500A Distribution Terminal Block

NCT-500A Distribution Terminal Block

CE RoHS

500A IEC 60947-7-1

520 Amp (UL certification application)

Modular: allows versatile building of power blocks single pole, two pole, three pole or four pole.













  • Space saving: compact
  • Tinned copper block: high conductivity
  • IP 20 protection/UL finger-safe: improved safety
  • Cable fixing screw diameters >95% fill ratio: excellent electrical contact,
  • safe connections
  • Visual inspection of wire: confirmation of connection
  • Hinged or removable cover: easy wiring
  • Clip-on DIN rail or mount to panel with screws: easy fixing

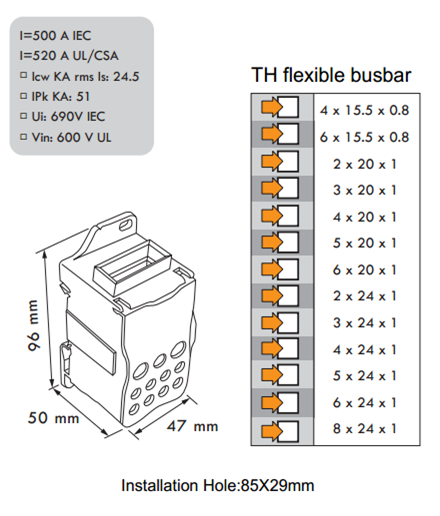

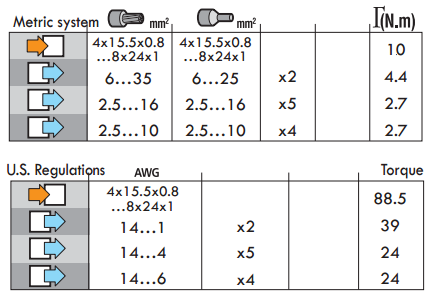

500 500-1
