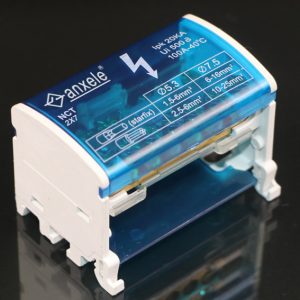

NCT-207 Copper Distribution Terminal Block

NCT-207 Copper Distribution Terminal Block

• Space saving: compact
• Tinned copper block: high conductivity
• IP 20 protection/UL finger-safe: improved safety
• Cable fixing screw diameters >95% fill ratio: excellent electrical contact,
• safe connections
• Visual inspection of wire: confirmation of connection
• Hinged or removable cover: easy wiring
• Clip-on DIN rail or mount to panel with screws: easy fixing

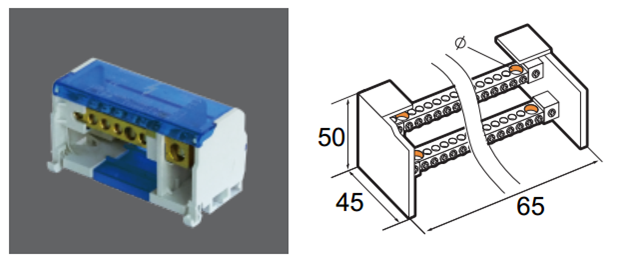

Type		Size	Terminals per pole
Nct-207	Solid core lead multistrand lead ［mm*］	L*H*W	2 pole
EN60947-1 CE CQC Certificate	1.5-6mm2 6-16mm2	65*45*50mm	1*16mm2 1*25 mm2 5*6 mm2
KA rating pead Max. Current 100A	Voltage 500V	For  type

…
