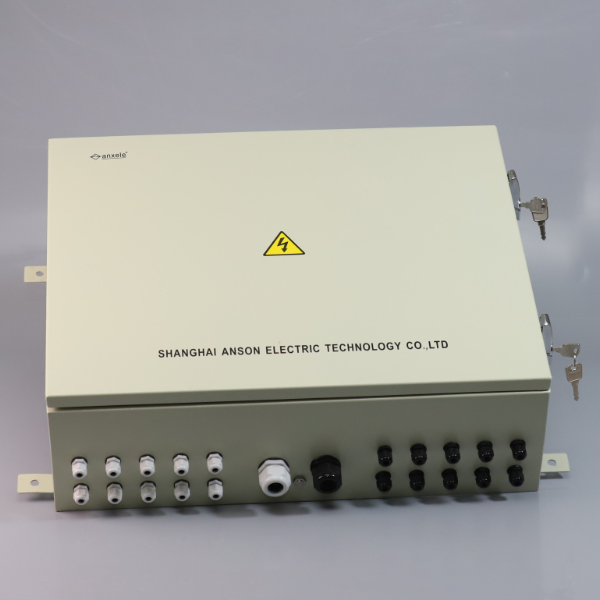

NBPV-8 PV Combiner Box

NBPV-8 PV Combiner Box

Application

• The IP55/IP67 design is used for outdoor installation
• MC4 compatible input/output connectors for easy installation
• DC fuse for each PV string with fuse links meet PV standard
• DC isolator or DC MCB for isolation or over-voltage protection with inside operation
• Anti-lighting and surge protector only for PV
• Each channels has 6 sets of input/output connectors
• The enclosure is made by polycarbonate and ABS, anti-UV or Stainless material

Anxele PV String DC Combiner Boxes are key components in the PV Solar power systems, which are placed between Solar Modules and the inverters.

Efficient Protection Grade IP65/66

Combiner box is waterproof, dust proof and anti-corrosion, withstand harsh environmental exposure.

PV Solar String Current Aggregation

Multiple string input, one string output, Available for -24 string, Max current 30A per string.

Effective Isolating

Series Isolator Switches, current 16A to 60A, Max voltage up to 1500VDC, widely meet the various demands from PV power systems.

Lightning Protection

NS1-PV40 Surge Protector Device with plug gable design, up to 1000VDC, 40KA, with lightning protection for PV power system.

Over-current Protection and Short-circuit Protection

SFPV-25B touch-safe fuse with LED indicator light the function is over current protection.

SFPV and NCM1 series circuit breaker, with the function of Short-circuit protection and over current protection, the Max current up to 630A, Max voltage up to 1000VDC

Parmeter

Dimensions and Wiring Diagram

…
