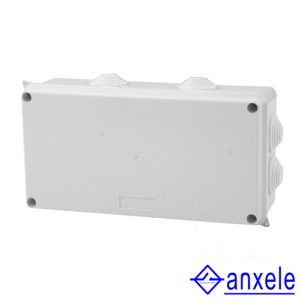

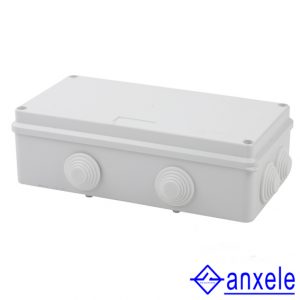

AX-RA 200×100×70 Junction Box

AX-RA 200×100×70 Junction Box

AX-RA 200×100×70 Junction Box

Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on















Body material: ABS
Stopper material: PVC
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Installation:

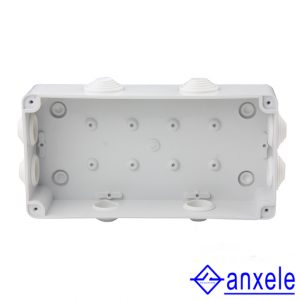

1. Inside: There are the installation holes in the base for circuit board or din rail.
2. Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: Cutting a hole in the PVC stopper as related cable size or installing cable gland to get better waterproof performance.



Product Parameters

Model Code Hole Qty. Hole Size(mm) Protection level G. Weight N. Weight PCS/CTN Master carton size
AX-RA 50×50 4 25 IP55 13.5 12.3 300 46x38x51cm
AX-RA 80×50 4 25 IP55 14.7 13.4 240 53x35x62cm
AX-RA 85x85x50 7 25 IP55 17.2 16.0 200 53x41x53cm
AX-RA 100x100x70 7 25 IP65 14.9 13.5 100 62x49x35cm
AX-RA 150x110x70 10 25 IP65 15.1 13.8 60 67x33x46.5cm
AX-RA 150x150x70 8 25 IP65 16.3 15.0 60 84.5x34x45cm
AX-RA 200x100x70 8 25 IP65 16.6 15.3 60 64x46x42cm
AX-RA 200x155x80 10 36 IP65 14.5 13.2 40 69.5×43.5x42cm
AX-RA 200x200x80 12 36 IP65 18 16.6 40 90x46x40.5cm
AX-RA 255x200x80 12 36 IP65 21.9 20.1 40 55x45x78.5cm
AX-RA 255x200x120 12 36 IP65 21.9 20.1 30 64x55x62cm
AX-RA 300x250x120 12 36 IP65 20.3 18.4 20 61.5×55.5x63cm
AX-RA 400x350x120 16 36 IP65 15 13.3 10 74.5×42.5×61.5cm

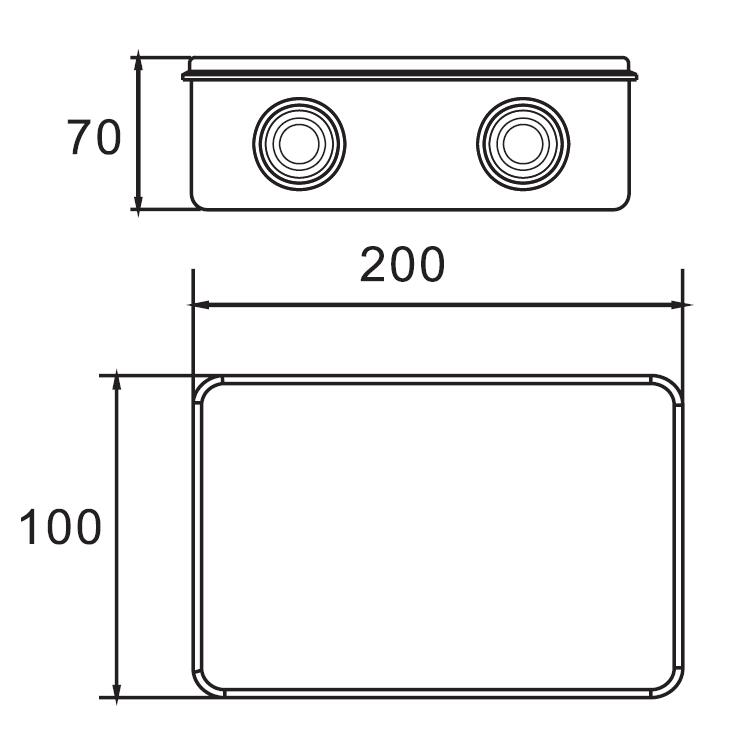

Dimensions

AX-RA 200×100×70 Junction Box
