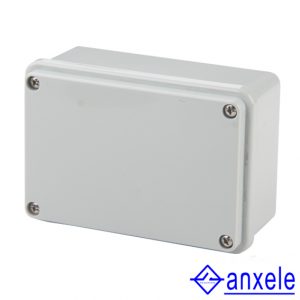

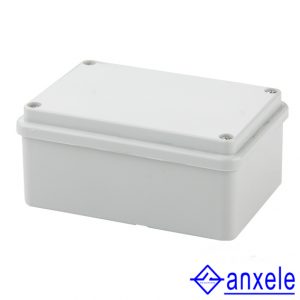

AX-NT 120×80×50 Junction Box

AX-NT 120×80×50 Junction BoxAX-NT 120×80×50 Junction Box

Application:Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.















Body material: ABS
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Installation:

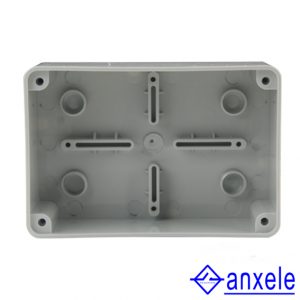

1. Inside: There are the installation holes in the base for circuit board or din rail.
2. Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: Holes can be opened on the box as customers’ requirements, and installing cable gland can bring with better waterproof performance.



Product Parameters

Model Code Protection level G. Weight N. Weight Qty/Carton Carton Dimenstion
AX-NT 120 X 80 X 50 IP65 12.4 10.9 100 47 X 28 X 57
AX-NT 150 X 110 X 70 IP65 13.0 11.5 60 61 X 34 X 44
AX-NT 190 X 140 X 70 IP65 19.7 18.2 60 74.5 X 41 X 44
AX-NT 240 X 190 X 90 IP65 13.5 12 20 53 X 42 X 49.5
AX-NT 300 X 220 X 120 IP65 19.9 18.4 20 65 X 48 X 65.5
AX-NT 380 X 300 X 120 IP65 18.3 16.8 10 65 X 41.5 X 65

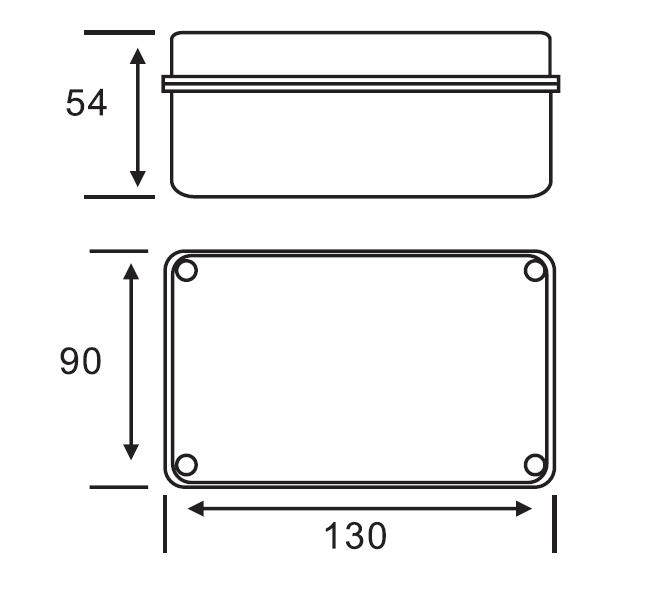

Dimensions

AX-NT 120×80×50 Junction Box

AX-NT 120×80×50 Junction Box AX-NT 120×80×50 Junction Box…
