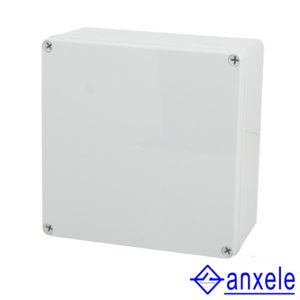

AX-KT 200×200×95 Junction Box

AX-KT 200×200×95 Junction Box

AX-KT 200×200×95 Junction Box

Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.















Body material: ABS
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Protection grade: IP65
Installation:

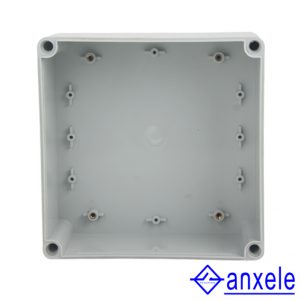

1. Inside: There are the installation holes in the base for circuit board or din rail.
2. Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: Cutting a hole in the PVC stopper as related cable size or installing cable gland to get better waterproof performance.



Product Parameters

Model CodeProtection levelG. WeightN. WeightQty/CartonCarton Dimenstion
AX-KT 65 X 50 X 55IP6521.52030052 X 41 X 29.5
AX-KT 95 X 65 X 55IP6525.123.624049.5 X 40.5 X 46.5
AX-KT 100 X 100 X 75IP6520.418.910052 X 42 X 39.5
AX-KT 110 X 80 X 45IP6524.322.820046 X 42 X 47
AX-KT 110 X 80 X 70IP652018.512057 X 33.5 X 45
AX-KT 110 X 80 X 85IP6519.718.210057 X 33.5 X 45
AX-KT 125 X 125 X 75IP6516.615.16052 X 39.5 X 39.5
AX-KT 125 X 125 X 100IP6519.417.96052 X 39.5 X52
AX-KT 130 X 80 X 70IP6521.419.912054 X 41.5 X 45
AX-KT 130 X 80 X 85IP6525.423.912054 X 50 X 44.5
AX-KT 160 X 80 X 55IP6521.419.910042 X 34 X 57
AX-KT 160 X 80 X 95IP652220.55042 X 34 X 49.5
AX-KT 170 X 140 X 95IP6517.816.35057.5 X 52 X 49.5
AX-KT 175 X 125 X 75IP651715.55054 X 52.5 X 32
AX-KT 175 X 125 X 100IP6511.910.43039.5 X 37 X 52
AX-KT 175 X 175 X 100IP6514.412.93054.5 X 37 X 53.5
AX-KT 180 X 80 X 70IP6520.418.99056 X 41 X 46
AX-KT 200 X 150 X 100IP6528.5273047 X 42 X 67
AX-KT 200 X150 X 130IP6521.620.14061.5 X 41 X 68.5
AX-KT 200 X 200 X 95IP6518.5173062 X 42 X 49.5
AX-KT 200 X 200 X 130IP6514.613.12042 X 42 X 67
AX-KT 250 X 80 X 70IP6515.714.25052 X 41 X 36
AX-KT 250 X 80 X 85IP6518.817.35052 X 42 X 44.5
AX-KT 250 X 150 X 100IP6511.5102052 X 32 X 52
AX-KT 250 X 150 X 130IP6517.115.63052 X 47 X 67
AX-KT 280 X 190 X 130IP6510.69.11040 X 30 X 67
AX-KT 280 X 190 X 180IP6514.5131258 X 40 X 56
AX-KT 280 X 280 X 130IP658.67.1658 X 58 X 41
AX-KT 280 X 280 X 180IP659.68.1658 X 58 X 56
AX-KT 340 X 280 X 130IP659.58657.5 X 35 X 41
AX-KT 340 X 280 X 180IP657.96.4457.5 X 35 X 37.5
AX-KT 380 X 190 X 130IP6510.99.4840 X 40 X 54
AX-KT 380 X 190 X 180IP6512.511640 X 59 X 38
AX-KT 380 X 280 X 130IP659.88.3657.5 X 39 X 41
AX-KT 380 X 280 X 180IP6586.5457.5 X 39 X 37.5

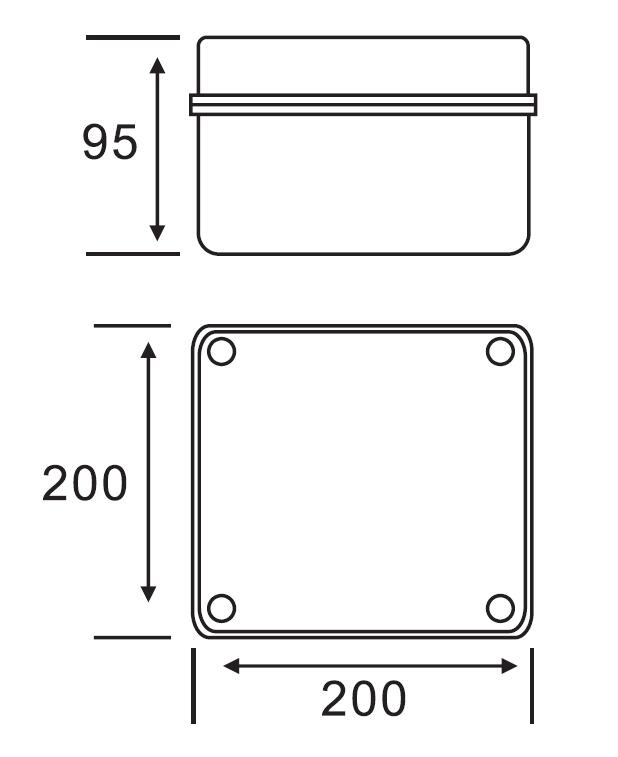

Dimensions

AX-KT 200×200×95 Junction Box

AX-KT 200×200×95 Junction Box AX-KT 200×200×95 Junction Box
