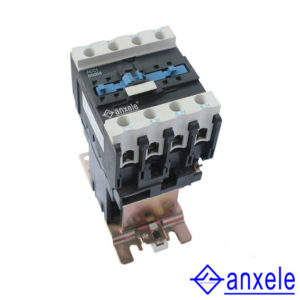

ACC1-65004Z DC operated AC contactor

APPLICATION

ACC1-Z series “anxele” brand DC operated AC contactor(hereinafter to be referred as contactor), it mainly applies to the circuit of AC 50Hz/60Hz, and rated insulation voltage 690V. When used in AC-3, and rated operational voltage 380V, rated current up to 95A, for long distance breaking circuit and frequently starting or control the motor. lt can be also cimbined with the auxiliary contact block, time-delay

block, thermal overload relay devices etc.

This product conforms to GB 14048.4、IEC60947-4-1 standard.











MODEL AND MEANING

NORMAL AUNNING AND INSTALLATION CONDITIONS

  • Ambient air temperature:-5℃~+40℃, the average value should not exceed+35℃ within 24 hours.
  • Elevation:at most 2000m.
  • Atmospheric conditions: When the temperature at 40, the relative humidity of atomsphere should

be at the most 50%. When at relatively low temperatures, it could have higher relative humidity.

Monthly maximum relative humidity could be not more than 90% . Special measures should be

taken due to occurrence of dews.

  • Class of pollution:Class 3
  • Installation category:Ⅲ
  • Installation conditions: Degree of inclination between fitting surface and vertical surface should

not exceed Ⅰ

  • Impact shock:Product should be installed and used in the place where often shakes and impacts.

…
