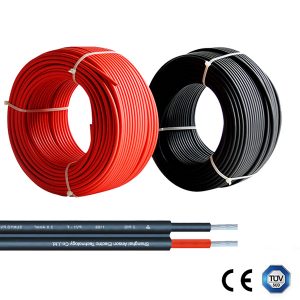

PV1-F Twin Solar Cable

Specification PV1-F Twin Solar Cable

Conductor: Tinned fine Re copper strands, according to VDE0295/IEC60228.Class5

Insulation: Polyolefin Copolymer electron-beam cross-linked

Sheath Jacket: Polyolefin Copolymer electron-beam cross-linked

Nominal Voltage: Uo/U=600V/1000VAC,1000/1800VDC

Test voltage: 6500V,50Hz,5Min

Temperature Rating: -40oC-90oC, More Than 25 Years (TUV)

Smoke Emission: IEC61034,EN 50268-2

Low Fire Load: DIN 51 900

Certification: TUV 2PFG 1169/08.2007 PV1-F



Dimensions NSC4 Wire
The size from 1.5mm2 to 120mm2

Construction Conductor Construction Conductor  Outer Resistance Max Current Carring Capacity
n×mm² n×m mm mm Ω/Km A
2×1.5 30×0.25 1.58 4.90 13.3 30
2×2.5 50×0.256 2.06 5.45 7.98 41
2×4.0 56×0.3 2.58 6.15 4.75 55
2×6 84×0.3 3.15 7.15 3.39 70
2×10 142×0.3 4.0 9.05 1.95 98
2×16 228×0.3 5.7 10.2 1.24 132
2×25 361×0.3 6.8 12.0 0.795 176
2×35 494×0.3 8.8 13.8 0.565 218
2×50 418×0.39 10.0 16.0 0.393 280
2×70 589×0.39 11.8 18.4 0.277 350
2×95 798×0.39 13.8 21.3 0.210 410
2×120 1007×0.39 15.6 21.6 0.164 480
…
