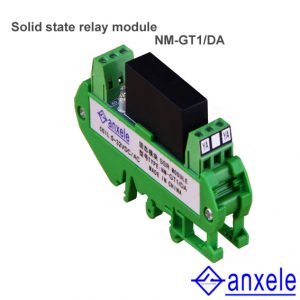

NM-GT1 Solid State Relay Module

NM-GT1 Solid State Relay Module

NM-Series
Relay modules are mainly small electromagnetic relays, supplemented with power relays, terminal-type module interface devices with instruction and protection function. Input protection; output over-voltage protection; output over-current protection. It is widely used in the interface between peripheral devices, control signals and adjustment device of automation process to achieve matching of frequency and power.

Type	NM-GT1	NM-GT2	NM-GT4
Specification
Size(L x W x H)	90x18x55mm	90x34x55mm	90x66x55mm
Technical data
Load voltage	220VAC/380VAC	220VAC/380VAC	220VAC/380VAC
Load current	4A220VAC/3A380VAC	4A220VAC/3A380VAC	4A220VAC/3A380VAC
Control voltage	5-32VDC/AC	5-32VDC/AC	5-32VDC/AC
Control current	6-35mA	6-35mA	6-35mA
On-state voltage drop	≤1.5V	≤1.5V	≤1.5V
On-state leakage current	≤1.5mA	≤1.5mA	≤1.5mA
On-state time	≤10ms	≤10ms	≤10ms
Withstanding voltage	1500VAC	1500VAC	1500VAC
Insulation resistance	500MΩ500VDC	500MΩ500VDC	500MΩ500VDC
Environment temperature	-25～+70℃	-25～+70℃	-25～+70℃
Weight	60g	95g	170g

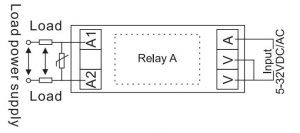

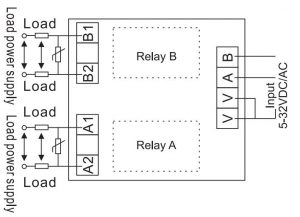

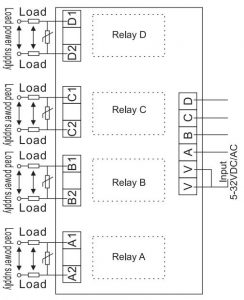

Wiring diagramNote: Input voltage can be customized, see instruction for details; an example of 24V
