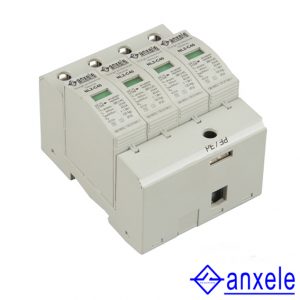

NL2-C40 4P Surge Protection Device

NL2-C40 4P Surge Protection DeviceNL2-C40 4P Surge Protection Device

Module design, convenient installation, with easy electric maintains operation
Built-in over current and over heat, temperature control open circuit technology
Adopt independent intelligence property right and high performance sensitivity resistance plates
Small creepage current, fast response time, remnant low voltage
Indicate alarm display, green(normal), red(malfunction)
A sensitive heat tripping/deterioration device is placed inside the protection module, when the protection device gets damaged because of overload, the inbuilt tripper shall act in time to cut off the connection with the power supply

SPD Type 2 according to EN 61643-11

SPD Class II according to IEC 61643-1

Classification C according to E DIN VDE 0675-6



Technical parameters

NL2-C40
SPD to EN 61643-II Type 2
SPD to IEC 61643-I Class II
SPD to VDE 0675-6 Class C
Max. continuous voltage Uc 275 V 320 V 385 V 440 V
Nominal discharge current (8/20μs) In 20 kA
Max. discharge current (8/20μs) Imax 40 kA
Voltage protection level Up ≤ 1.3kV ≤ 1.5kV ≤ 1.8kV ≤ 2.0kV
Response time tA ≤ 25 ns
Max. back-up fuse 125 A gl/gG
Short-circuit withstand current 25kA/50Hz
Operating temperature range TU -40℃…+80℃
Cross-sectional area (min.) 1.5 mm2 solid / flexible
Cross-sectional area (max.) 35 mm2 stranded / 25 mm2 flexible
Mounting on 35 mm DIN rail acc. To EN 60715
Degree of protection IP 20
Housing material Thermoplastic; extinguishing degree UL 94 V-0
Remote signaling contact (floating switch) Yes (optional accessory)
Switch capacity AC: 250V/0.5A; 125V/3 A
Cross-sectional area for remote signaling terminals Max. 1.5 mm2 solid / flexible

Order information (Let’s take 385V as example)

Type Description
NL2-C40/1-385 Class C, Imax: 40kA, 1 pole, 385V, Surge Protection Device for TN-S, TN-C, IT systems
NL2-C40/2-385 Class C, Imax: 40kA, 2 pole, 385V, Surge Protection Device for TN-S systems (Single-phase)
NL2-C40/3-385 Class C, Imax: 40kA, 3 pole, 385V, Surge Protection Device for TN-C systems (Three-phase)
NL2-C40/4-385 Class C, Imax: 40kA, 4 pole, 385V, Surge Protection Device for TN-S systems (Three-phase)
…
