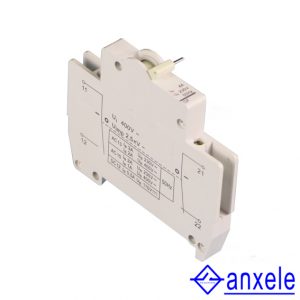

NKM1-OF Auxiliary Contact for NKM1,NKL3

NKM1-OF Auxiliary Contact forNKM1,NKL3

Technical Data

Electrical Features

Rated value: AC415 /400V 50/60Hz 3A

AC240 /400V 50/60Hz 3A

DC130V 1A

DC48V 2A

DC24V 6A

Configurations: NKM1-OF 1NO/O+1N/C

NKM1-FB 1N/O+1N/C

Rated impulse withstand voltage (1.2/50)Uimp: 4,000V

Rated short circuit making capacity: 20le, t=0.1s

Dielectric test voltage at ind. Freq. for 1min: 2kV

Insulation voltage Ui: 500V

Pollution degree: 2

Mechanical Features

Electrical life:6,000

Mechanical life:10,000

Protection degree: IP20

Ambient temperature (with daily average 35 ):-5℃..+40℃

Storage temperation: -25℃…+70℃

Installation

Terminal connection type: Cable

Terminal size top/bottom for cable: 2.5mm² 18-13AWG

Tightening torque 0.8 N*m 7In-Ibs.

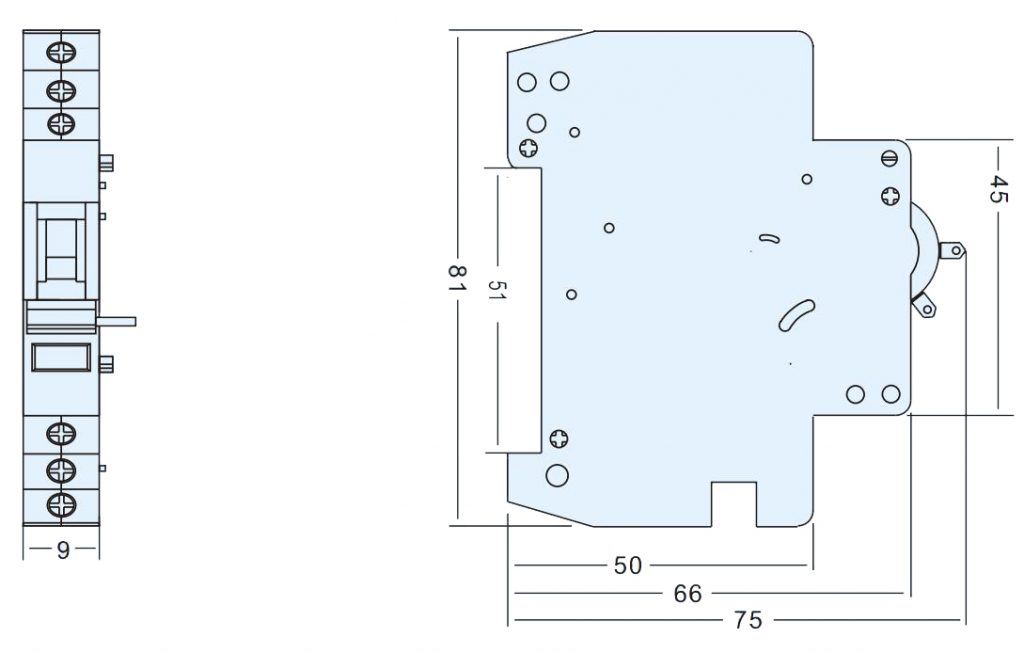

Dimensions (mm)

…
