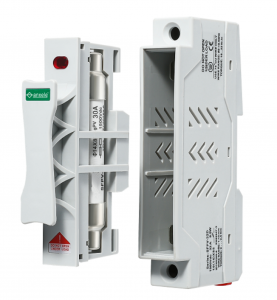

NFPV-50L/1500V PV Fuse Holder

NFPV-50L/1500v PV Fuse Holder

Application

NFPV-50L Fuse Holder was designed and manufactured , complying with the standard IEC60269-6 The Rated Current up to 50A,rated voltage up to 1500V DC. It applied for PV DC combiner box, inverter etc, with the main function of over-current protection and effective disconnection.









Parmeter

NFPV-50L Fuse Holder
Pole 1P
According to IEC 60269-6
Electrical Characteristics
Rated Working Voltage Ue 1500V DC
Breaking Capacity 20KA
Max Power Dissipation 3W
Contol and Indication
Operating State/Fault Indication Indicator Light OFF/Indicator Light ON
Connection and Installation
Wire 2.5mm2~25
Terminal Screws M5
Torque Nm 2.8
Degree of Protection IP20
Installation Environment
Fuse Size
130×65x24 mm
Operating Temperature Range TU -30℃~+70℃
For Mounting On TH35-7.5/DIN35
Pollution Degree 3
Relative Humidity +20 ℃≤ 95%,+40℃≤50%
Weight 0.07kg Per pole
Installation Class Ⅲ

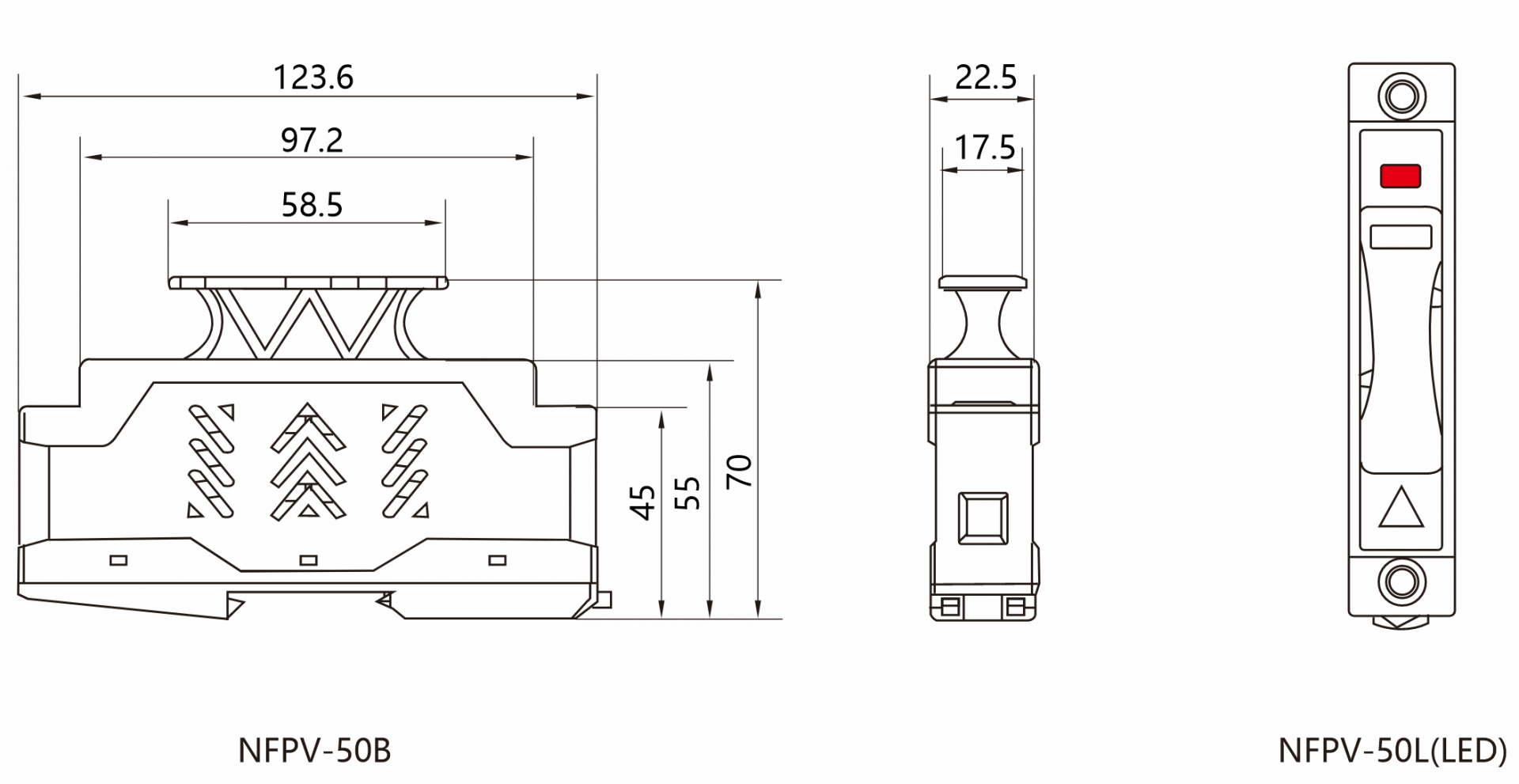

Dimensions

…
