Description:

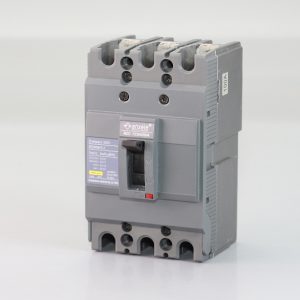

Anson Electric EasyPact NZC125H is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations.
It is used for standard applications in industries and buildings, offering good performance at competitive price
The breaking capacity (Icu) is 50kA rms at 240VAC 50/60Hz.
The operational voltage is 550VAC 50/60Hz.
The rating of the thermal-magnetic trip unit is 120A.
The trip unit provides fixed overload and instantaneous protections.
This 2 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact NZC125H is compliant with international standards (IEC 60947) and marine certifications.
Specifications:
| Main | |
| range of product | Easy Pact |
| product or component type | Circuit breaker |
| device short name | Easypact NZC125H |
| circuit breaker name | Easypact NZC125H |
| device application | Distribution |
| poles description | 3P |
| protected poles description | 3t |
| network type | AC |
| network frequency | 50/60 Hz |
| [In] rated current | 100 A at 40 °C |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 550 V AC 50/60 Hz conforming to IEC 60947-2 |
| breaking capacity code | H |
| breaking capacity | 10 kA Icu at 125 V DC 1P conforming to IEC 60947-2 10 kA Icu at 250 V DC 2P conforming to IEC 60947-2 10 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 380…400 V AC 50/60 Hz conforming to IEC 60947-2 30 kA Icu at 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 5 kA at 125 V DC conforming to IEC 60947-2 5 kA at 250 V DC conforming to IEC 60947-2 5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2 15 kA at 380…400 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 220…240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 110…130 V AC 50/60 Hz conforming to IEC 60947-2 7.5 kA at 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| suitability for isolation | Yes conforming to IEC 60947-2 |
| utilisation category | Category A |
| trip unit name | TM-D |
| trip unit technology | Thermal-magnetic |
| trip unit rating | 100A at 50 °C |
| protection type | Overload protection Short-circuit protection |
| pollution degree | 3 conforming to IEC 60947 |
| Complementary | |
| control type | Toggle |
| mounting mode | Fixed |
| mounting support | Backplate |
| upside connection | Front |
| downside connection | Front |
| mechanical durability | 8500 cycles |
| electrical durability | Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| connection pitch | 25 mm |
| local signalling | Positive contact indication |
| neutral protection setting | Without protection |
| earth-leakage protection | Without |
| height | 130 mm |
| width | 75 mm |
| depth | 60 mm |
| Environment | |
| standards | EN/IEC 60947-1 EN/IEC 60947-2 GB/T 14048.2 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -35…85 °C |
| Contractual warranty | |
| Warranty | 18 months |
