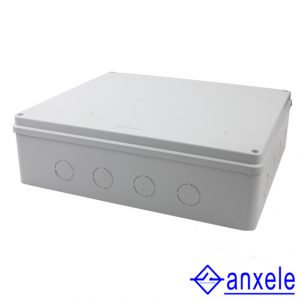

AX-RT 400×350×120 Junction Box

AX-RT 400×350×120 Junction BoxAX-RT 400×350×120 Junction Box

Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.















Body material: ABS
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Installation:

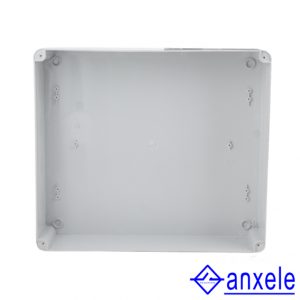

1. Inside: There are the installation holes in the base for circuit board or din rail.
2. Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: The plastic plate in the hole can be knocked off and installing cable gland to get better waterproof performance.



Product Parameters

Model Code Hole Qty. Hole Size(mm) Protection level G. Weight N. Weight PCS/CTN Master carton size(cm)
AX-RT 50×50 4 25  IP55 12.9 11.7 300  46x38x51
AX-RT 80×50 4 25  IP55 13.1 11.8 240  53x35x62
AX-RT 85x85x50 7 25  IP55 15.6 14.4 200  53x41x53
AX-RT 100x100x70 7 25  IP65 13.9 12.5 100  62x49x35
AX-RT 150x110x70 10 25  IP65 13.9 12.3 60  67x33x46.5
AX-RT 150x150x70 8 25  IP65 15.6 14.3 60  84.5x34x45
AX-RT 200x100x70 8 25  IP65 15.6 14.3 60  64x46x42
AX-RT 200x155x80 10 36  IP65 13.3 12.0 40  69.5×43.5×42
AX-RT 200x200x80 12 36  IP65 16.0 14.4 40  90x46x40.5
AX-RT 255x200x80 12 36  IP65 19.8 18.0 40  55x45x78.5
AX-RT 255x200x120 12 36  IP65 19.8 18.0 30  64x55x62
AX-RT 300x250x120 12 36  IP65 19.7 17.8 20  61.5×55.5×63
AX-RT 400x350x120 16 36  IP65 14.8 13.1 10  74.5×42.5×61.5

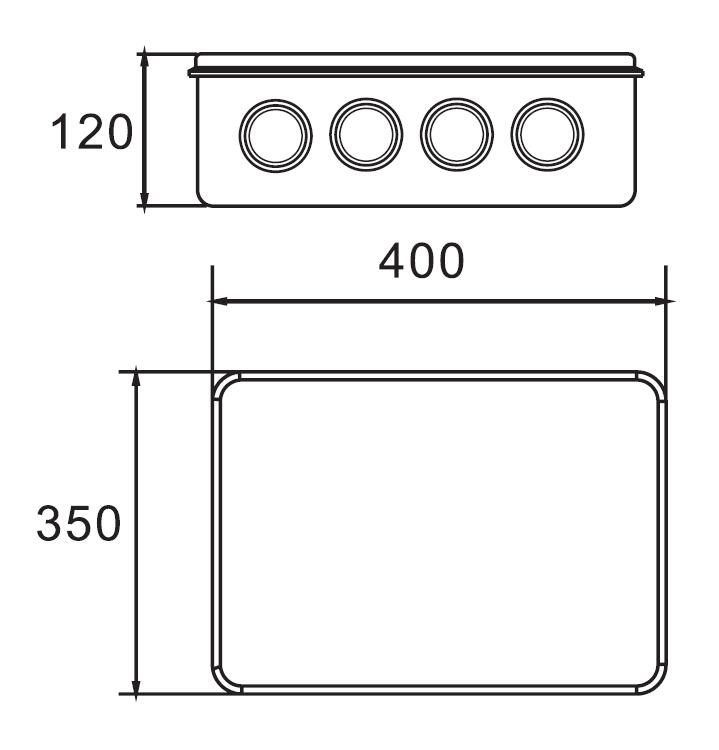

Dimensions
