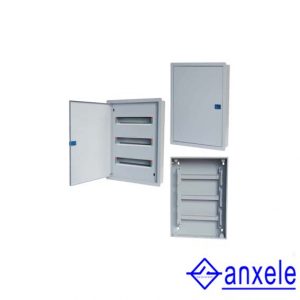

ASMR-III Flush Metal Branch Box

ASMR-III Flush Metal Branch BoxASMR-III Flush Metal Branch Box

Description:

  • Easy and safe to use
  • The branch line runs parallel to the main cable
  • High moisture resistance and excellent mechanical protection
  • Full range of sizes availble









Model Type Row Way
Flush

Surface

 Din-Rail 1

2

3

4

5

6

 10

12

14

16

18

20

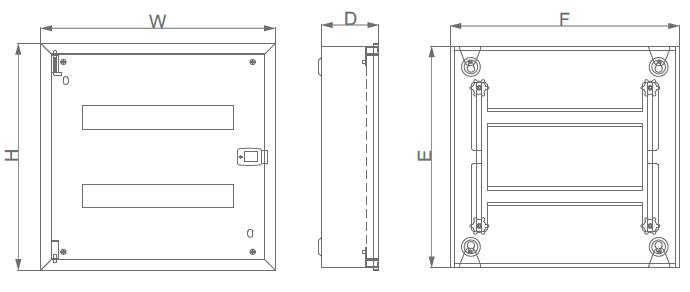

Surface model H W D E F
1×16WAY 280 450 110 270 440
2×16WAY 430 450 110 420 440
3×16WAY 580 450 110 570 440
4×16WAY 730 450 110 720 440
5×16WAY 880 450 110 870 440
6×16WAY 1030 450 110 1020 440
Flush model H W D E F
1×16WAY 290 460 110 270 440
2×16WAY 440 460 110 420 440
3×16WAY 590 460 110 570 440
4×16WAY 740 460 110 720 440
5×16WAY 890 460 110 870 440
6×16WAY 1040 460 110 1020 440

ASMR-III Flush Metal Branch Box…
