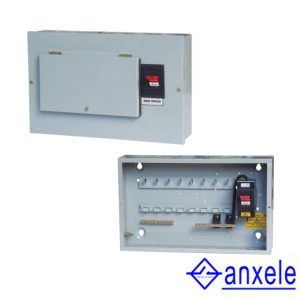

AMS(MEM) Flush Metal Branch Box

AMS(MEM) Flush Metal Branch BoxAMS(MEM) Flush Metal Branch Box

Description:

  • Easy and safe to use
  • The branch line runs parallel to the main cable
  • High moisture resistance and excellent mechanical protection
  • Full range of sizes availble









Model Type Phase Way Main switch
Surface Plug-in Single 4,6,8,10,12 ELCB
Isolator
ELCB + Isolator

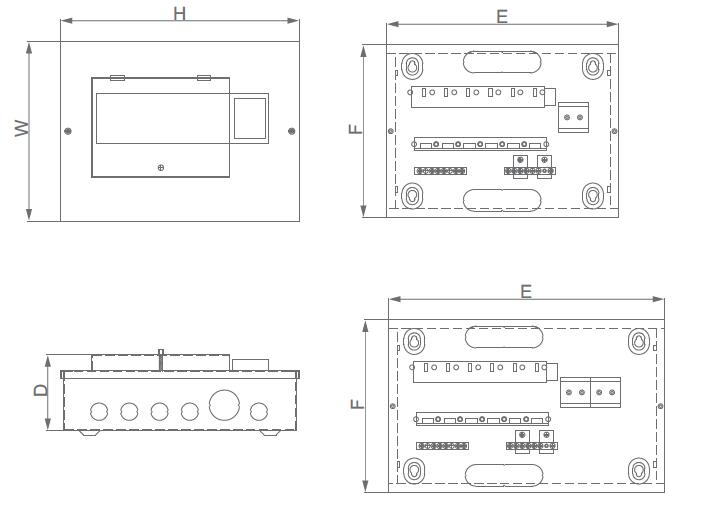

Single Phase H W D E F
4Way 228 210 90 218 200
6Way 279 210 90 269 200
8Way 230 210 90 320 200
10Way 381 210 90 371 200
12Way 432 210 90 422 200

AMS(MEM) Flush Metal Branch Box…
