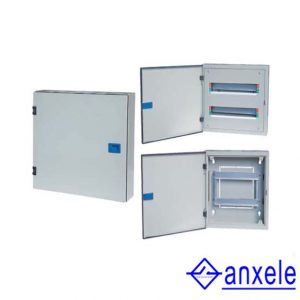

AMR-B Surface Metal Branch Box

AMR-B Surface Metal Branch BoxAMR-B Surface Metal Branch Box

Description:

  • Easy and safe to use
  • The branch line runs parallel to the main cable
  • High moisture resistance and excellent mechanical protection
  • Full range of sizes availble









Model Type Row Way Main switch
Surface Din-Rail 1 10 MCCB
14
18
22
2 14
18
3 14
18
4 14
18
5 14
18

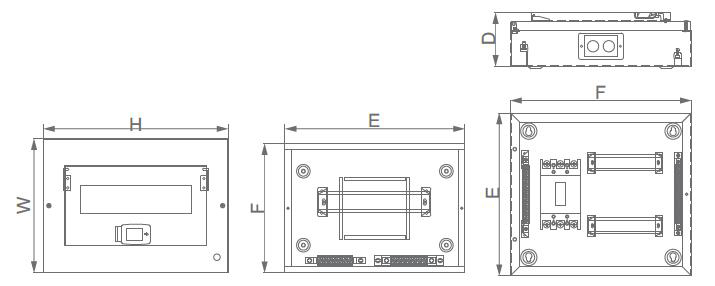

1 Row H W D E F
10WAY 220 300 95 290 210
14WAY 220 370 95 360 210
18WAY 220 440 95 430 210
22WAY 220 510 95 500 210
Row

15way

 H W D E F
2 360 400 120 360 400
3 500 400 120 500 400
4 640 400 120 640 400
5 780 400 120 780 400

AMR-B Surface Metal Branch Box…
