Description

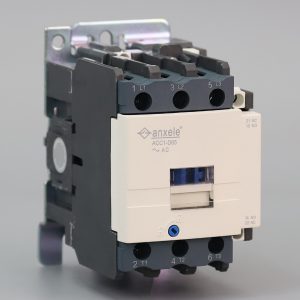

Anson Electric TeSys Deca contactor, 3 poles (3NO),for motor control applications 65A/690V,AC-3 37kW@690V. and for non-inductive load control applications up to 80A@60℃ in category AC-1.
It provides a 220V 50/60Hz AC coil,1NO/1NC built-in auxiliary contact, connection by screw clamp terminals.
For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, CCC), Green Premium compliant (RoHS).
Specifications
| Main | |
| range | TeSys |
| range of product | ACC1 Deca |
| product or component type | Contactor |
| device short name | ACC1-D65 |
| contactor application | Resistive load Motor control |
| utilisation category | AC-3 AC-1 AC-2 AC-4 AC-3e |
| poles description | 3 pole |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25…400 Hz |
| [Ie] rated operational current | 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Complementary | |
| motor power kW | 37 kW at 660…690 V AC 50 Hz 18.5 kW at 220…230 V AC 50 Hz 30 kW at 415 V AC 50 Hz |
| motor power hp | 5 hp at 115 V AC 60 Hz for 1 phase motors 10 hp at 230/240 V AC 60 Hz for 1 phase motors 20 hp at 230/240 V AC 60 Hz for 3 phases motors 40 hp at 460/480 V AC 60 Hz for 3 phases motors 50 hp at 575/600 V AC 60 Hz for 3 phases motors |
| pole contact composition | 3 NO |
| protective cover | With |
| auxiliary contacts type | Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| auxiliary contact composition | 1 NO + 1 NC |
| [Ui] rated insulation voltage | Control circuit: 690 V conforming to IEC 60947-1 Power circuit: 690 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947 |
| overvoltage category | III |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) for control circuit 80 A (at 60 °C) for power circuit |
| Irms rated making capacity | 140 A AC for control circuit conforming to IEC 60947-5-1 |
| associated fuse rating | 10 A gG for control circuit conforming to IEC 60947-5-1 125 A gG at <= 690 V coordination type 1 for power circuit |
| control circuit type | AC at 50/60 Hz |
| coil technology | Without built-in bidirectional peak limiting diode suppressor |
| control circuit voltage limits | 0.3…0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz 0.85…1.1 Uc (-40…60 °C):operational AC 60 Hz 1…1.1 Uc (60…70 °C):operational AC 50/60 Hz |
| power dissipation per pole | 4.2 W AC-3 6.4 W AC-1 4.2 W AC-3e |
| minimum switching current | 5 mA for control circuit |
| minimum switching voltage | 17 V for control circuit |
| non-overlap time | 1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts |
| operating time | 4…19 ms opening. 12…26 ms closing |
| maximum operating rate | 3600 cyc/h 60 °C |
| inrush power in VA | 140 VA cos phi 0.75 (at 20 °C) 160 VA cos phi 0.75 (at 20 °C) |
| hold-in power consumption in VA | 13 VA 60 Hz cos phi 0.3 (at 20 °C) 15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| heat dissipation | 4…5 W at 50/60 Hz for control circuit |
| insulation resistance | > 10 MOhm for control circuit |
| tightening torque | Control circuit: 1.7 N.m – on screw clamp terminal – with screwdriver flat Ø 6 mm Power circuit: 5 N.m – on screw terminal – with screwdriver flat Ø 6 to Ø 8 mm Control circuit: 1.7 N.m – on screw clamp terminal – with screwdriver pozidriv No 2 |
| terminals description ISO n°1 | (13-14)NO (21-22)NC (A1-A2)CO |
| mounting support | Rail / Plate |
| mechanical durability | 6000000 cycles |
| safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| operating altitude | 0…3000 m |
| compatibility code | ACC1-D |
| standards | IEC/EN 60947-5-1 – EN/IEC 60947-4-1 |
| product certifications | CCC |
| Environment | |
| IP degree of protection | IP2x conforming to IEC 60529 |
| climatic withstand | Conforming to IACS E10 |
| ambient air temperature for storage | -60…80 °C |
| fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Contractual warranty | |
| Warranty | 18 months |
